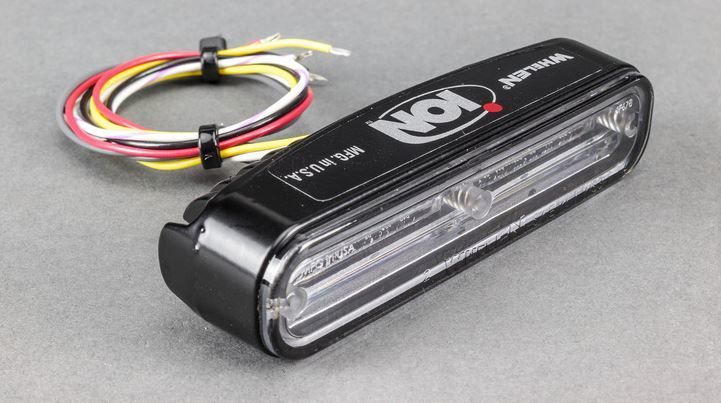

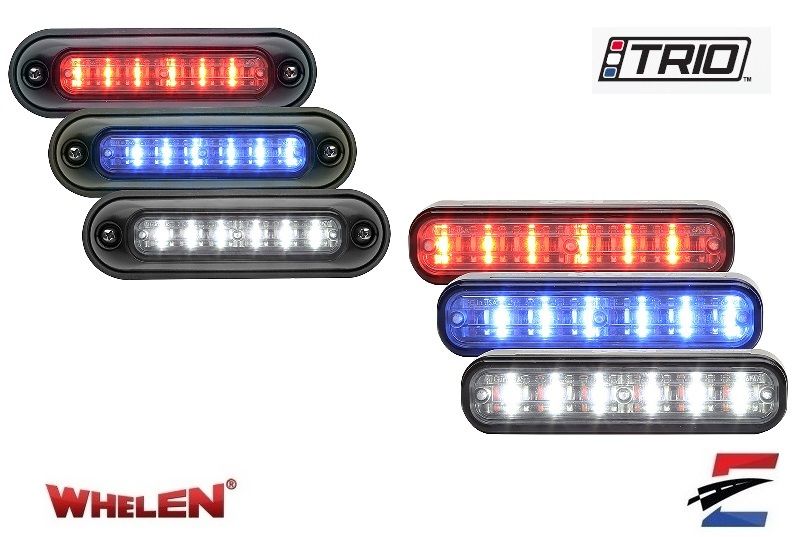

Whelen ION TRIO Linear LED Lighthead



or 4 interest free payments of $57.25 withlearn more
Led Colour's
Mounting Type

Whelen’s ION Series is one of the smallest and most versatile Super-LED lightheads in the industry today. The Whelen ION TRIO Linear LED Lighthead has been re-engineered with Linear optics and is available with TRIO (3 color) technology. Choose from any combination of one color, two color, or three color modes. All color modes have 25 flash patterns with 6 of them synchronizable in Phase 1 or Phase 2. This light is compact and versatile enough to mount in any small space on emergency and rescue equipment, off-road vehicles, industrial equipment, motorcycles, utility vehicles, marine applications and many other heavy-duty applications.

Available Colors:

  • I3JA - Red/Blue/Amber
  • I3JC - Red/Blue/White
  • I3KC - Red/Amber/White
  • I3MC - Blue/Amber/White


  • Choose from any combination of one color, two color, or three color modes.
  • Individual Control of each Color for programming and operation.
  • All color modes have 25 flash patterns with 6 of them synchronizable in Phase 1 or Phase 2.
  • Some flash patterns meet California Title XIII.

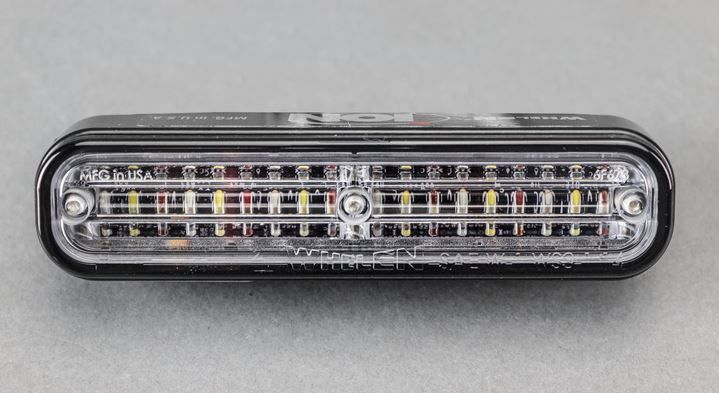

  • TRIO (three color interleaved) technology and new Linear-LED optics.

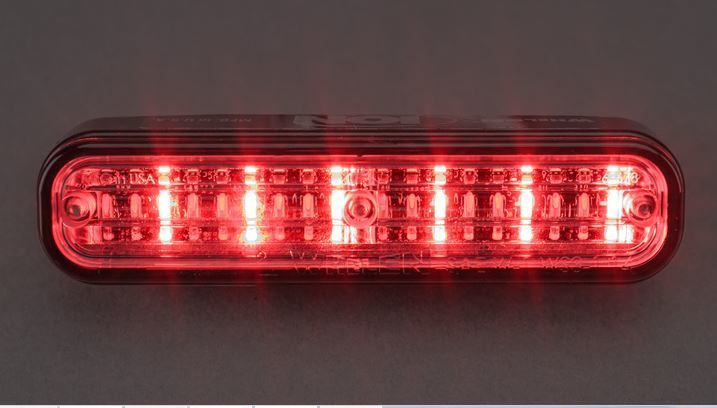

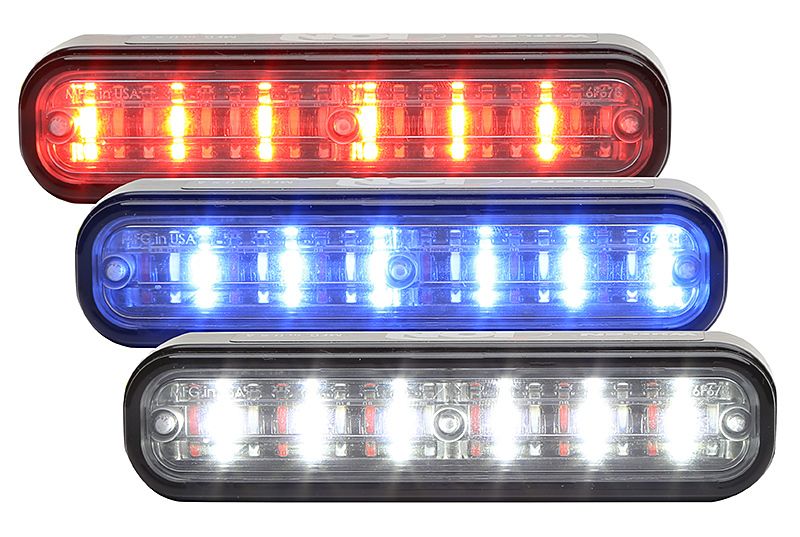

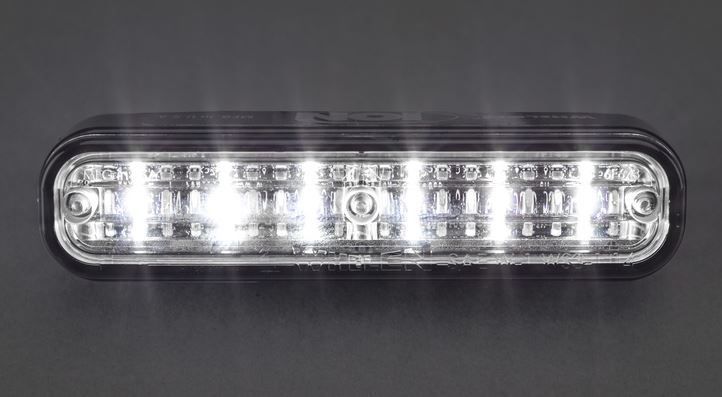

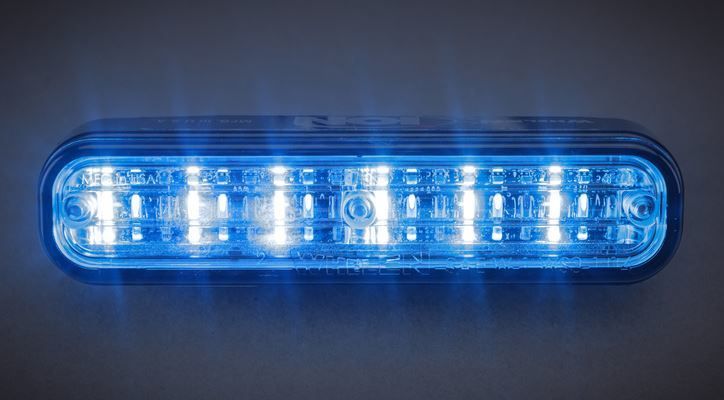

  • Available in Red, Blue, Amber and White combinations.
  • Hard coated lenses minimize environmental damage from the sun, salt and road chemicals.

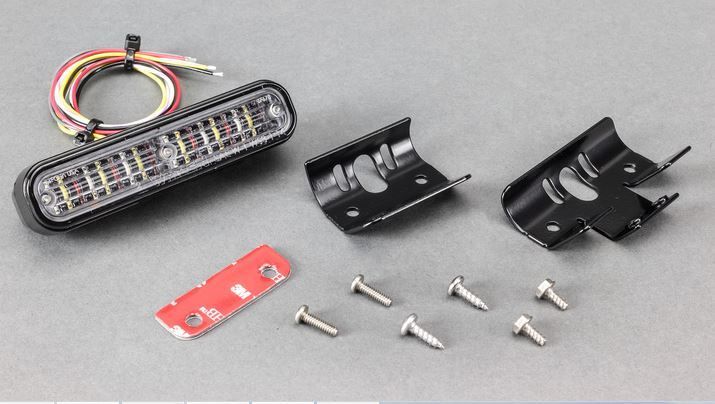

  • Universal mount includes combination permanent/pedestal, clip, edge mounts, double-sided tape, with Black or White housings

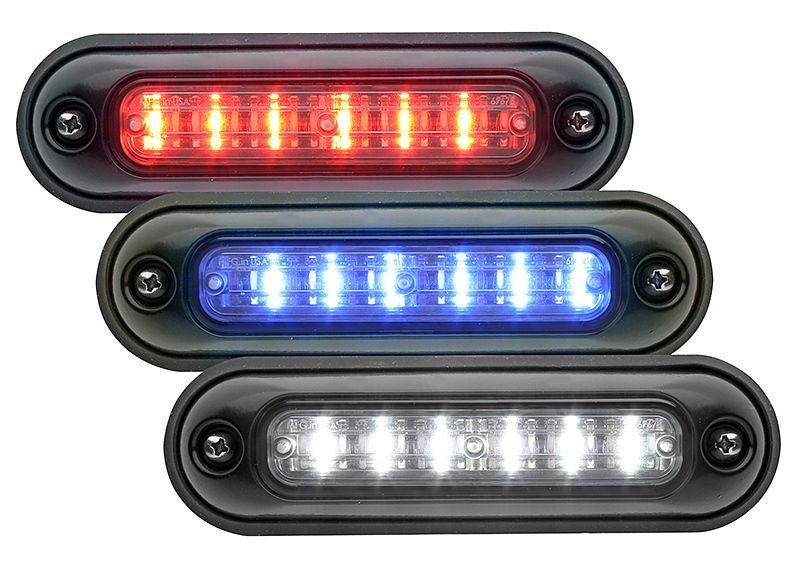

  • Available in Surface Mount & Universal Mount.
  • Synchronizable to other Whelen Sync products.
  • Supplied with a 10 inch 5-wire pigtail.


  • Voltage: +12 VDC
  • Amp Draw: 1.00 Amps Peak / 0.40 Amps Average
  • Meets or exceeds SAE Class 1, SAE J595 specifications.
  • Dimensions: 4" W x 1" H x 1 5/16" D.

Whelen Five Year HDP Heavy-Duty Professional Warranty
